[SOLD] Asymmetry Dodecagon Cap

by Eureka_Admin 2024. 5. 17.

Do not contact me for following reasons:
1. product inventory status
What you see under the category of "Shop" is all I have ready to sell at the moment.

2. custom fountain pen build
For personal health reasons, I am not able to continuously provide this service.

3. Nib assembly, fountain pen repairs, etc.
The only services I can provide from now on is, making a completed fountain pen (in limited numbers).

and prodiving products under "Shop(parts)" catergory


◆ contact:  beatmaster90@naver.com
1. Please send the URL (current page web address)
2. include your name

(may not respond fast, depending on order status, etc. but will respond eventually. processing request mails by chronological order.)



◆payment methods
(contact me via email)

1. Paypal

2. WISE
   - usually similar processing speed compared to Paypal
   - Cheaper due to lower fees from WISE
   - For Wise make your account here:
https://wise.com/gb/account/



◆Details:
------- crack / shock resistant barrel, cap, grip design
------- pen material: Ebonite (Japan)
------- feed material: Ebonite (Japan)
------- converter not included
(Use Pilot Con-40 / Con-70, or eyedropper(don't recommend as carry around pen)
(I'm not a retail seller of pilot, so it isn't possible for me to get pilot converters in batch.
please purchase from local sellers)
------- grip section: 0.01mm accuracy, precision machined, solid & thick one piece design
------- barrel & cap: plain round / dodecagon precision machined, solid & sturdy one piece design

------- nib: BOCK (Germany)
nib size "M" (same thickness as mechnical pencil 0.7mm)
may be a bit thinner than regular M, due to my additional nib grinding
Nib surface micro blasted treatment

The following has been done for the nib:
1. precise nib selection from a large batch
2. nib surface micro blasting
3. nib friction fit installation
4. precision heat setting of ebonite feeder, to perfectly match the feed to the nib
5. nib slit size adjustment
6. nib point alignment
7. nib baby bottom removal (Eliminate Skipping)
8. nib scratchiness reduction
9. nib smoothing / test
10. nib overall inspection

------- feed: eureka 5th gen V3  ebonite feeder
solid & sturdy one piece design
("The most precise and complex structured ebonite feed ever created")
details regarding the feeder: https://eurekafp.com/670https://eurekafp.com/588https://eurekafp.com/590

- Feeder outer diameter precision <  ± 0.0025mm  (2.5 microns)
- Feeder overall dimensional precision < ± 0.025mm



* you can purchase extra / different kinds of ebonite feeder,
see here: https://eurekafp.tistory.com/670






◆Ebonite (Japan)
There's a huge quality difference between
Japanese vs Chinese / Indian ebonite.
the biggest issues i noticed with chinese / Indian ebonite is as follows:
1. lots of contaminants
2. lots of pits and micro-cracks
3. more nasty smell

Japanese high quality ebonite material does have the above problems as well.
However, the frequency of the problems I experienced is literally 100 times less.
(I have experience with Indian / Chinese Ebonite as well, although I don't use them anymore)



--------------------------------------------------------------------------------
 <<<Important Information >>>
◆How to Receive Notification For Newly Made Pens: https://eurekafp.com/notice/432
◆ (TIPs) Easy Roll Stoppers Four Your Eureka Pens: https://eurekafp.tistory.com/560

◆ What is micro blasted nib?: https://eurekafp.tistory.com/591, https://eurekafp.com/731
◆ Oring added to grip section for Con-70: https://eurekafp.tistory.com/712
◆ How to install Con-70 (MUST READ): https://eurekafp.com/757
◆ Con-70 related info (MUST READ): https://eurekafp.com/641 , https://eurekafp.com/681 , https://eurekafp.com/689
◆ PEEK Durability Test: https://eurekafp.com/676
◆ (Black PEEK) Quality grade explanation, please see here: https://eurekafp.com/732
---------------------------------------------------------------------------------






◆ Asymmetry Dodecagon Cap
- PEEK Black Dodecagon Cap
- PEEK Black Grip section (various designs)
- Ebonite Feeder
- micro-blasted Bock plain nib (M)

* o-ring installed inside grip section





◆ Price
--- Shipping: $25 (EMS Express, 7 days, full coverage insurance)

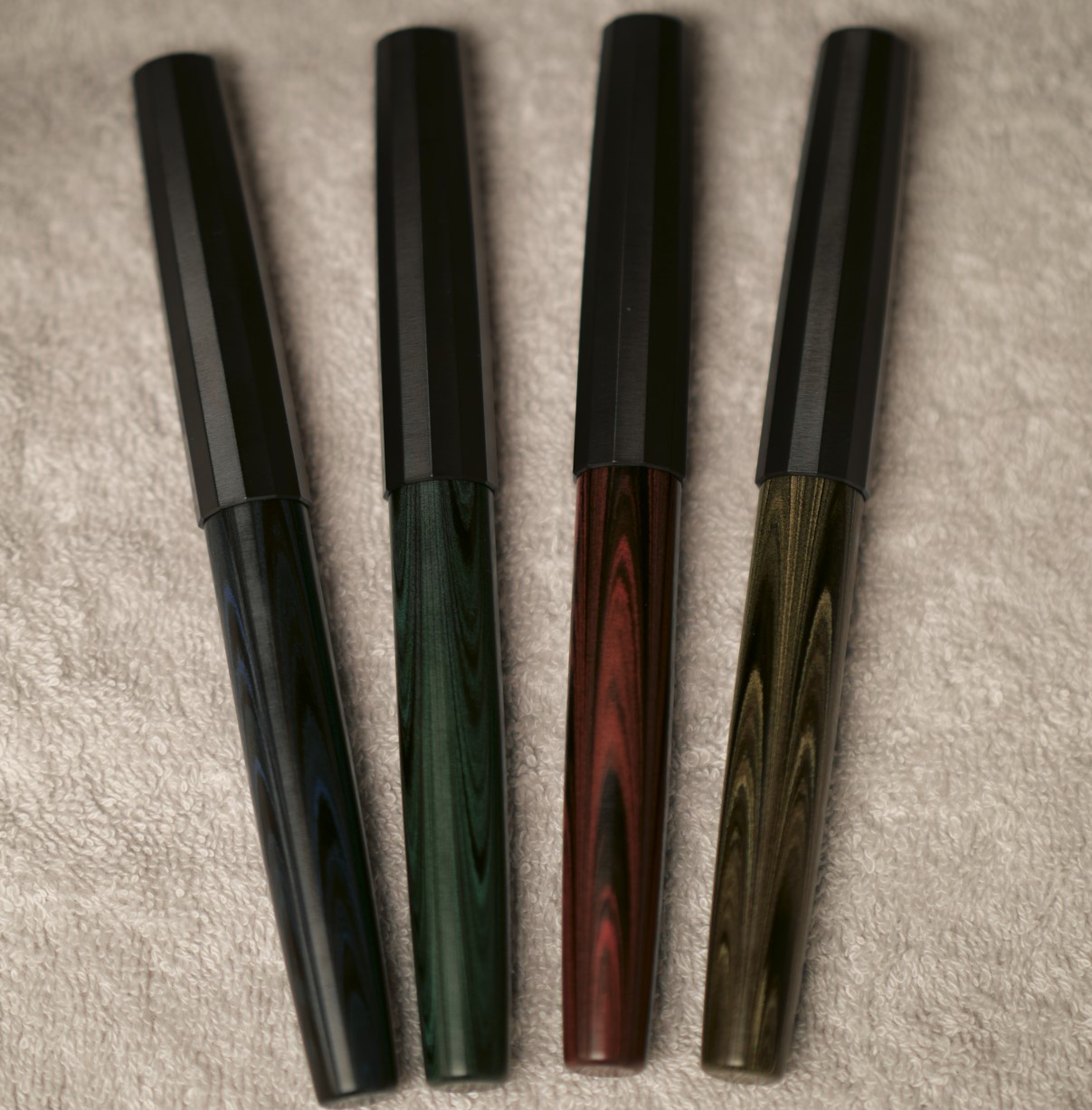

from left:
1. Asymmetry Dodecagon Cap (Dark Blue)
$140/149 (Wise/Paypal)
PEEK Black Cap quality: S
PEEK Black Grip quality: S

2. Asymmetry Dodecagon Cap (Mint Green)
$130/138 (Wise/Paypal)
PEEK Black Cap quality: A
PEEK Black Grip quality: S

3. Asymmetry Dodecagon Cap (Red)
$135/143 (Wise/Paypal)
PEEK Black Cap quality: A+
PEEK Black Grip quality: S

4. Asymmetry Dodecagon Cap (Beige)
$135/143 (Wise/Paypal)
PEEK Black Cap quality: A+
PEEK Black Grip quality: S

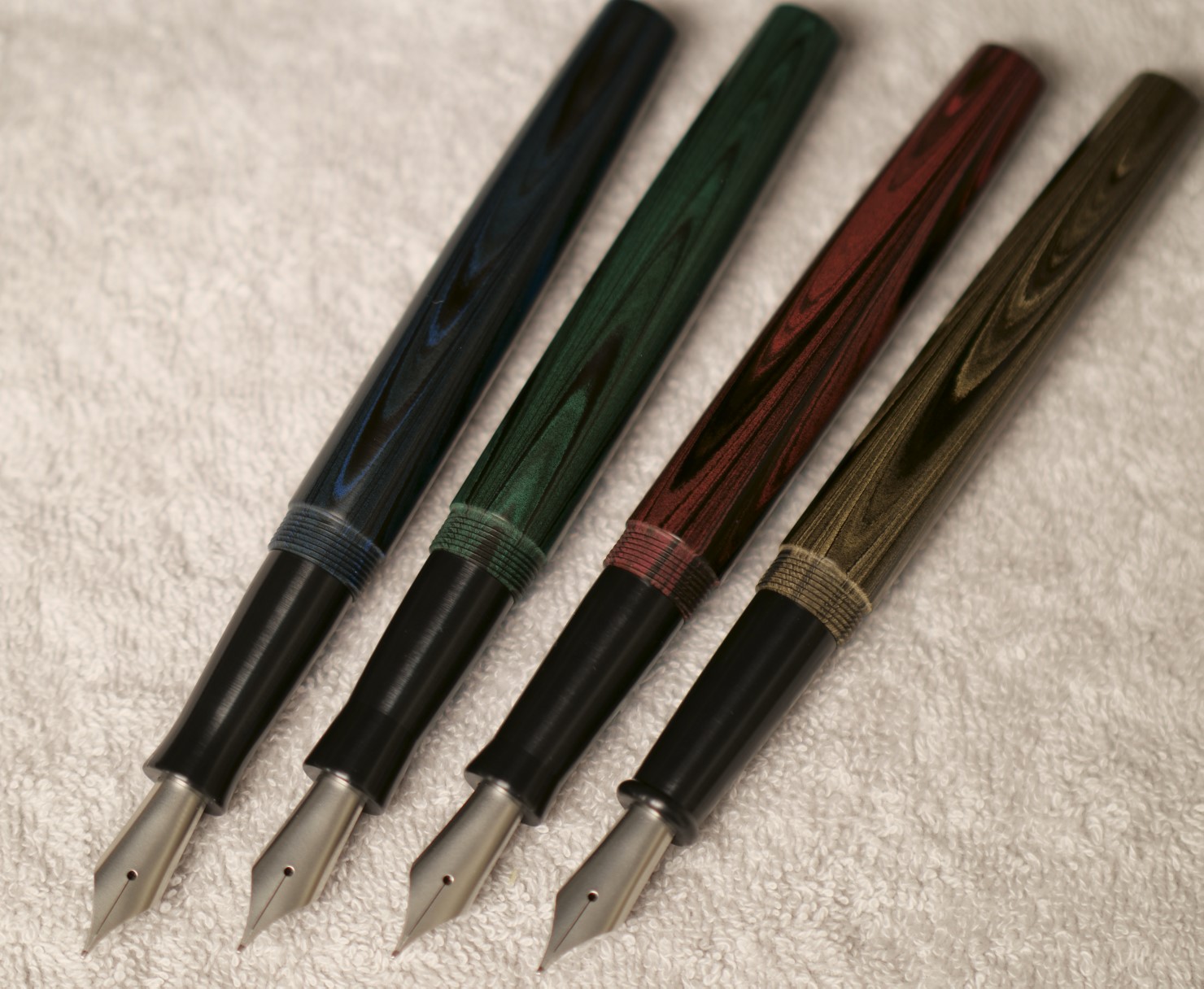

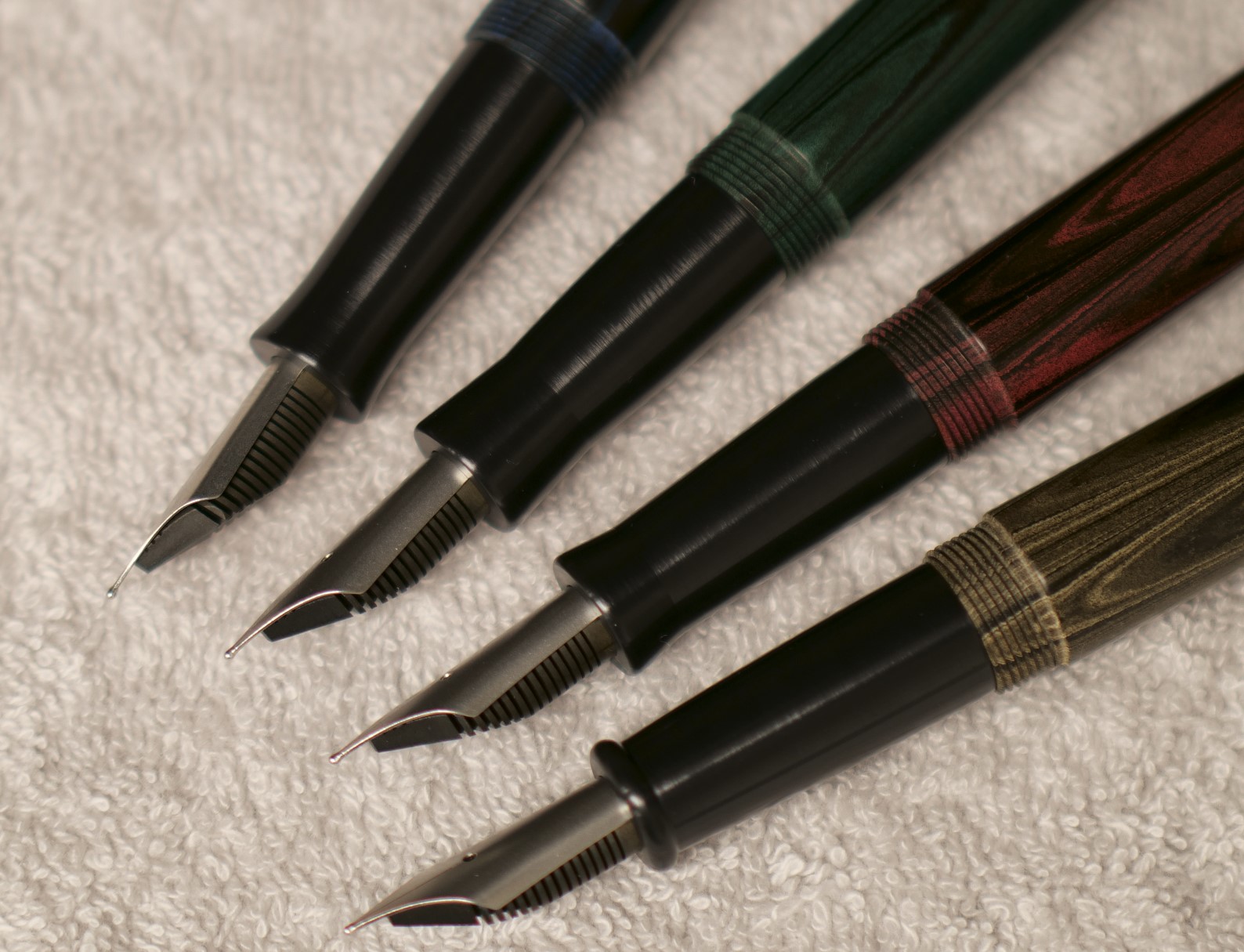

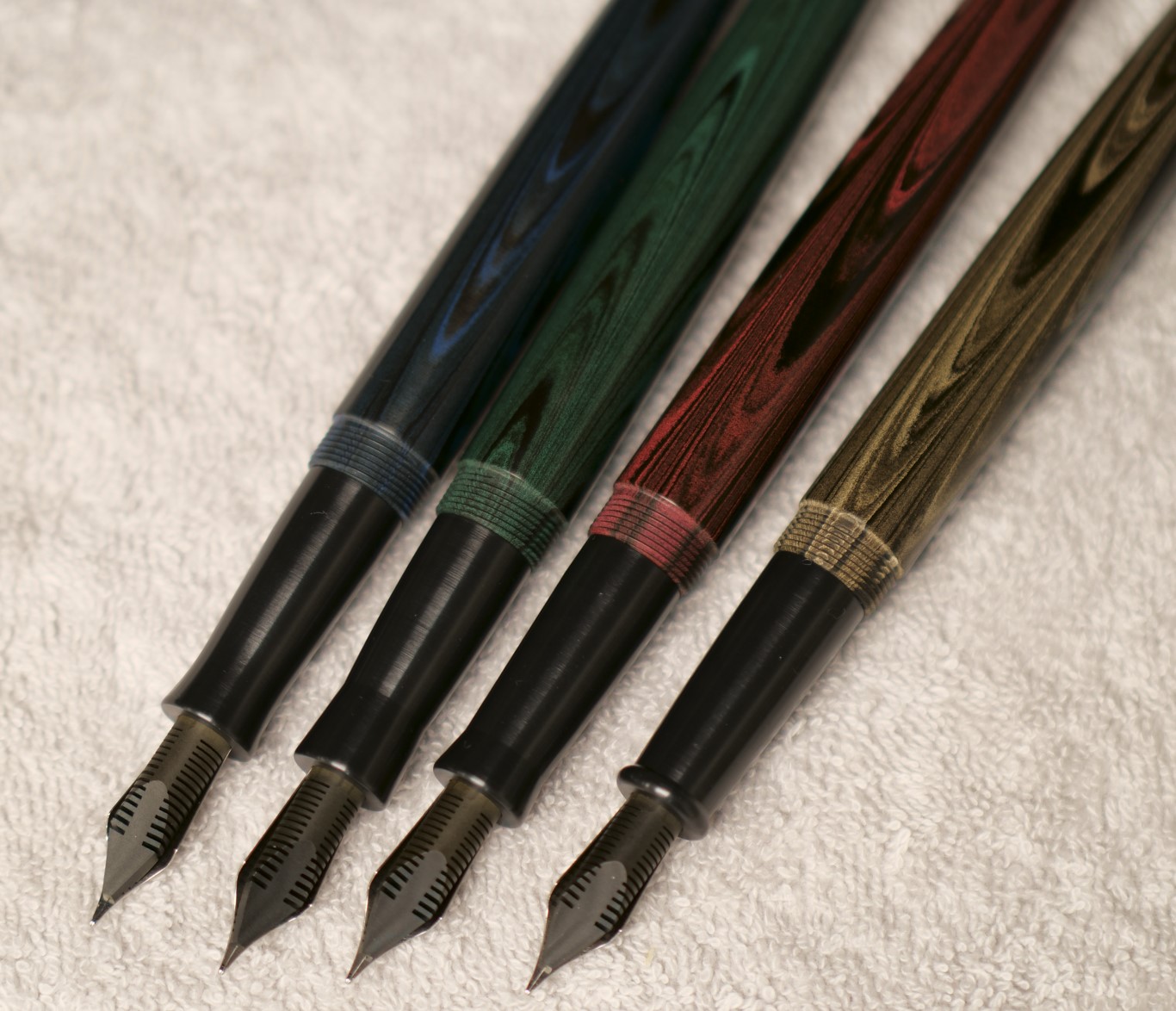

*the pen in the below photo will be sent
