◆Please do not contact me for following reasons:
1. product inventory status
What you see under the category of "Shop" is all I have ready to sell at the moment.
2. custom fountain pen build
For personal health reasons, I am not able to continuously provide this service.
3. Nib assembly, fountain pen repairs, etc.
The only services I can provide from now on is, making a completed fountain pen (in limited numbers).
and providing products under "Shop(parts)" catergory
* I will develop nib removal tool this year, and write tutorials regarding nib installation, etc.
so users can self-install / remove the nib.
◆ contact: beatmaster90@naver.com
1. Please send the URL (current page web address)
2. include your name
(may not respond fast, depending on order status, etc. but will respond eventually. processing request mails by chronological order.)
◆payment methods
(contact me via email)
1. Paypal
2. WISE
- usually similar processing speed compared to Paypal
- Cheaper due to lower fees from WISE
- For Wise make your account here:
https://wise.com/gb/account/
◆Details:
---------- crack / shock resistant barrel, cap, grip, feed design
---------- pen material:
Ebonite (Japan), ULTEM (GERMANY), PEEK tan (Germany),
PEEK black (Rod extruded in S.Korea / Pellets from Germany)
---------- feed material: Ebonite (Japan)
---------- converter not included
(Use Pilot Con-40 / Con-70, or eyedropper(don't recommend as carry around pen)
(I'm not a retail seller of pilot, so it isn't possible for me to get pilot converters in batch.
please purchase from local sellers)
------- grip section: 0.01mm accuracy, precision machined, solid & thick one piece design
* there may be small variation of color difference, between barrel, cap, and grip.
(PEEK manufacturer said PEEK changes a bit depending on the manufacturing date / process)
it could be either a bit lighter / darker color. functionality / performance is the same.
------- barrel & cap: plain round / dodecagon precision machined, solid & sturdy one piece design
------- barrel & cap will perfectly line up, with typical closing force
* may leave extra 1~2 microns, because surfaces may wear over years of use.
(a precision of ±0.001mm (a total error of 2 microns) is strictly followed to achieve optimal angle alignment)
---------- nib: BOCK (Germany)
nib size "M" (same thickness as mechnical pencil 0.7mm)
may be a bit thinner than regular M, due to my additional nib grinding
in-house Nib surface micro-blasting treatment
The following has been done for the nib:
1. precise nib selection from a large batch
2. nib surface micro-blasting
3. nib friction fit installation
4. precision heat setting of ebonite feeder, to perfectly match the feed to the nib
5. nib slit size adjustment
6. nib point alignment
7. nib baby bottom removal (Eliminate Skipping)
8. nib scratchiness reduction
9. nib smoothing / test
10. nib overall inspection
---------- feed: eureka 5th gen V3 ebonite feeder
solid & sturdy one piece design
("The most precise and complex structured ebonite feed ever created")
details regarding the feeder: https://eurekafp.com/670, https://eurekafp.com/588, https://eurekafp.com/590
- Feeder outer diameter precision < ± 0.0025mm (2.5 microns)
- Feeder overall dimension precision < ± 0.025mm
* extra $25 for additional ebonite feed(s), if needed.
* you can purchase different kinds of ebonite feeder,
see here: https://eurekafp.com/670
◆Ebonite (Japan)
There's a huge quality difference between Japanese vs Chinese / Indian ebonite.
the biggest issues i noticed with chinese / Indian ebonite is as follows:
1. lots of contaminants
2. lots of pits and micro-cracks
3. more nasty smell
Japanese high quality ebonite material does have the above problems as well.
However, the frequency of the problems I experienced is literally 100 times less.
(I have experience with Indian / Chinese Ebonite as well, although I don't use them anymore)
--------------------------------------------------------------------------------
<<<Important Information >>>
◆ How to install Con-70 (MUST READ): https://eurekafp.com/757
◆ Con-70 related info (MUST READ): https://eurekafp.com/641 , https://eurekafp.com/681 , https://eurekafp.com/689
◆ What is micro blasted nib?: https://eurekafp.tistory.com/591, https://eurekafp.com/731
◆ Oring added to grip section for Con-70: https://eurekafp.tistory.com/712
◆ What is PEEK material?: https://eurekafp.com/717
◆ PEEK Durability Test: https://eurekafp.com/676
◆ (Black PEEK) Quality grade explanation, please see here: https://eurekafp.com/732
◆How to Receive Notification For Newly Made Pens: https://eurekafp.com/notice/432
◆ (TIPs) Easy Roll Stoppers Four Your Eureka Pens: https://eurekafp.tistory.com/560
---------------------------------------------------------------------------------
◆ Fountain Pen Price:
----- Shipping: $25 (EMS Express, 7 days, full coverage insurance)
----- Spare O-ring Set (NBR Material S.Korea):
5 pieces: $2.00
10 pieces: $4.00

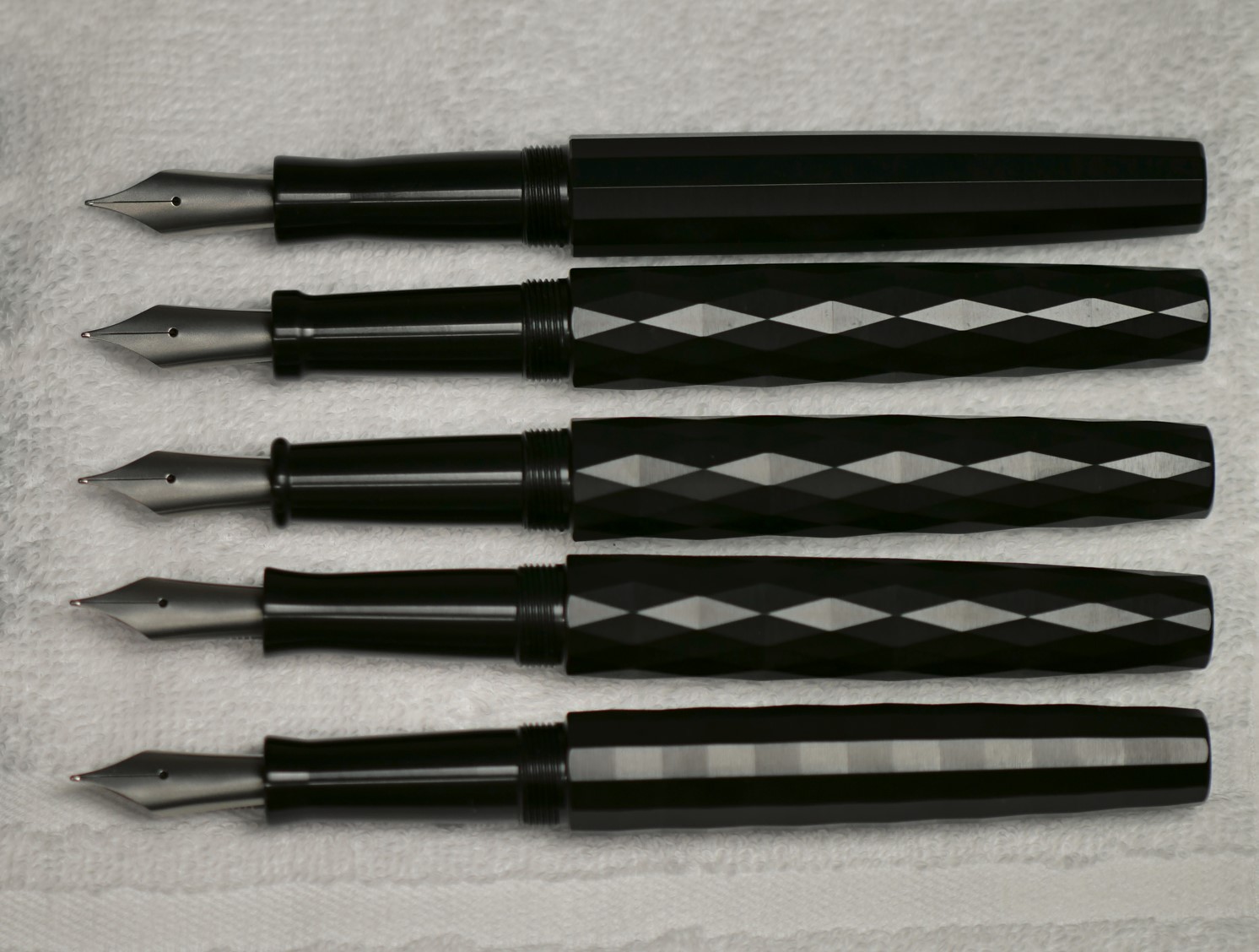

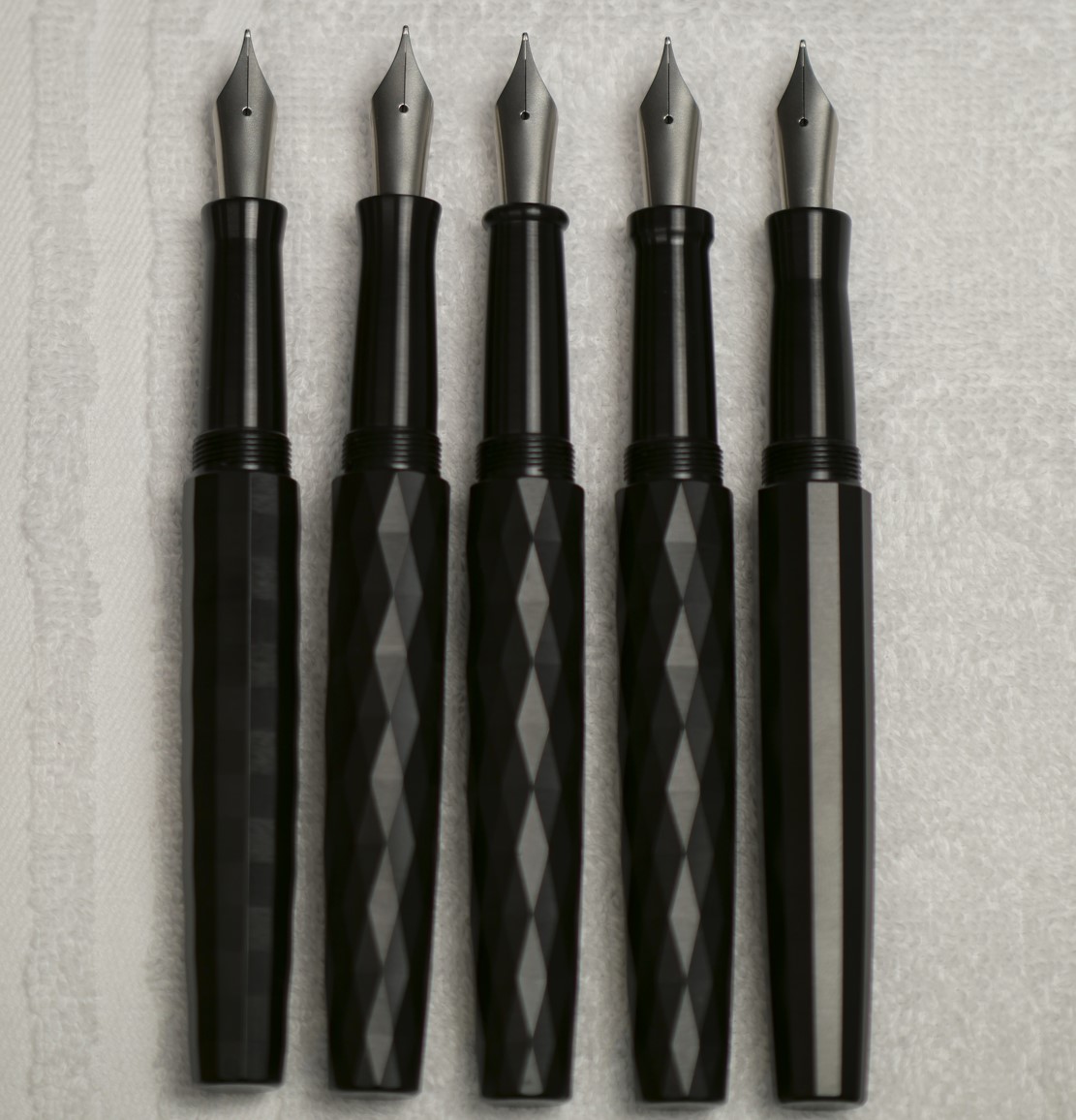

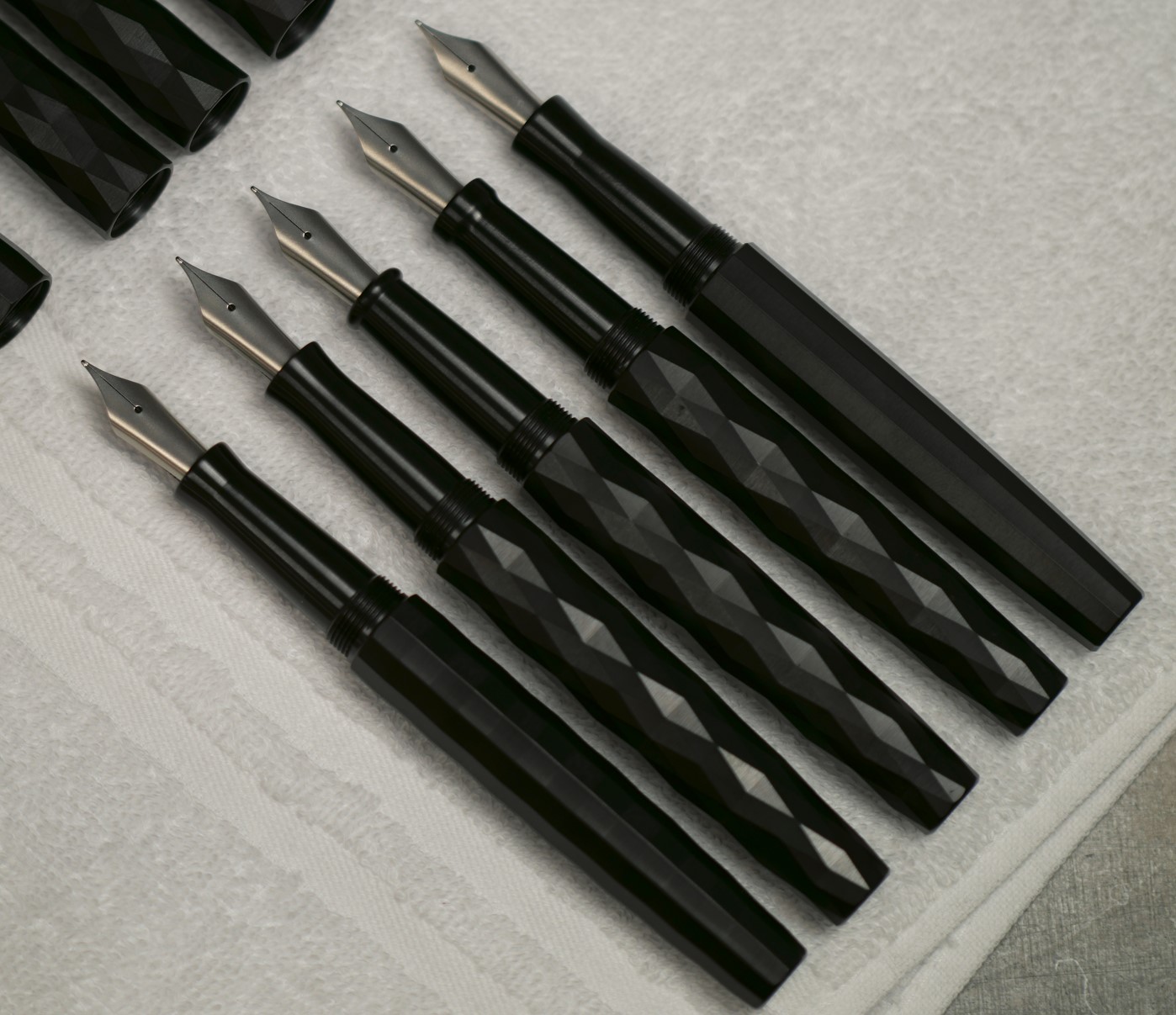

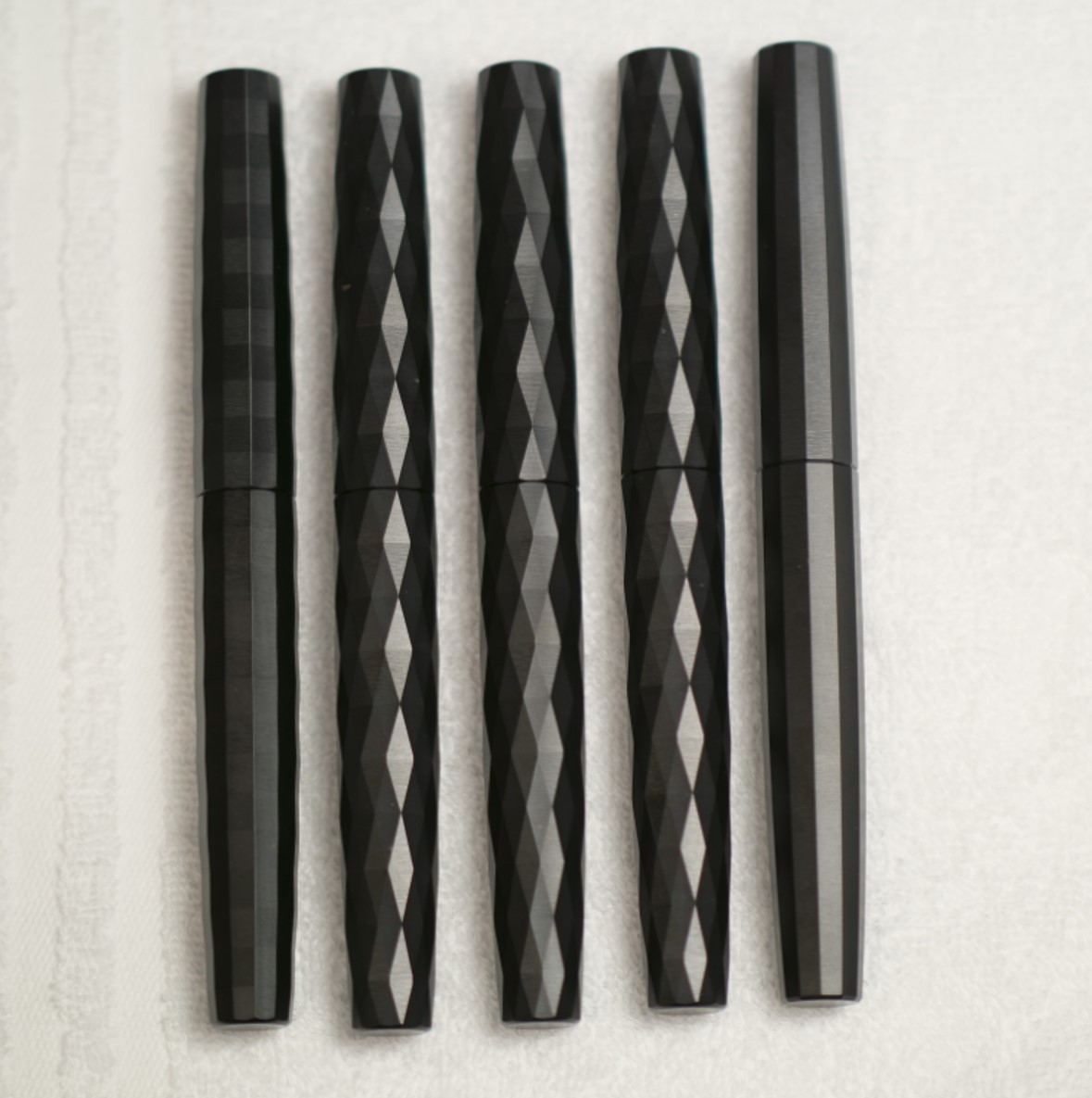

*the pen in the below photo will be sent
from left: 1. Dodecagon Emerald Symmetry (PEEK BLACK) $145/154 (Wise/Paypal)Barrel & Cap quality grade: A+Grip quality grade: S
2. Dodecagon Diamond Symmetry (PEEK BLACK)
$140/149 (Wise/Paypal)
Barrel & Cap quality grade: B
Grip quality grade: S
3. Dodecagon Diamond Symmetry (PEEK BLACK)
$155/164 (Wise/Paypal)
Barrel & Cap quality grade: A+
Grip quality grade: S
4. Dodecagon Diamond Symmetry (PEEK BLACK)
$150/159 (Wise/Paypal)
Barrel & Cap quality grade: A
Grip quality grade: S
5. Dodecagon Symmetry (PEEK BLACK)$135/143 (Wise/Paypal)Barrel & Cap quality grade: A Grip quality grade: S
