1. Please do not contact me regarding: product inventory status
What's under the category of "Shop" is all I have ready to sell at the moment.
Please forgive me for slow production.
Every pen requires a lot of hand work and careful calibration, so I can only produce them in limited quantities.
2. Please do not contact me regarding: custom fountain pen build
For production stability, I am not able to continuously provide this service.
3. Please do not contact me regarding : Fountain pen repairs of other brands, vintage, etc.
4. Please do not contact me about: Reverving a pen.
Previously I tried reservation many times, and it was horrible for me.
Due to my inherent disposition, I simply cannot work properly with such system, and it impacts my health very negatively. So please forgive me if I turn down reservation requests.
◆ contact: beatmaster90@naver.com
1. Please send the URL (current page web address)
2. include your name
(may not respond fast, depending on order status, etc. but will respond eventually. processing request mails by chronological order.)
◆payment methods
(contact me via email)
1. Paypal
2. WISE
- usually similar processing speed compared to Paypal
- Cheaper due to lower fees from WISE
- For Wise make your account here:
https://wise.com/gb/account/
◆Details:
---------- crack / shock resistant barrel, cap, grip, feed design
---------- pen materials (Machined from Solid Rod):
Ebonite (Japan), ULTEM (Germany / USA), PEEK Natural (Germany),
PEEK black (Rod extruded in S.Korea / Pellets from Germany), PEEK CF30 (carbon fiber 30%, Germany)
---------- feed material: Ebonite (Japan)
---------- Eureka ultem ink cartridge included
1) con-70, con-40 (not recommended)
2) eyedropper it (not recommend as carry around pen)
------- grip section: 0.01mm accuracy, precision machined, solid & thick one piece design
------- For PEEK natural color only:
there may be small variation of color difference, between barrel, cap, and grip.
(PEEK manufacturer said PEEK changes a bit depending on the manufacturing date / process)
it could be either a bit lighter / darker color. functionality / performance is the same.
------- barrel & cap: plain round / dodecagon precision machined, solid & sturdy one piece design
------- barrel & cap will line up, with typical closing force
* may leave extra 2~3 microns, because surfaces may wear over years of use.
(a total error of 5 microns ( ±0.0025) is followed to achieve optimal angle alignment)
Plastics Pyramid Chart (by Overall Performance)
---------- nib:
The following has been done for the nib:
1. precise nib selection from a large batch
2. nib surface micro- hammered finish
3. nib friction fit installation
4. precision heat setting of ebonite feeder, to perfectly match the feed to the nib
5. nib slit size adjustment
6. nib point alignment
7. nib baby bottom removal (Eliminate Skipping)
8. nib scratchiness reduction
9. nib smoothing / test
10. nib overall inspection
---------- feed: eureka 5th gen V3 ebonite feeder
solid & sturdy one piece design
("The most precise and complex structured ebonite feed ever created")
details regarding the feeder: https://eurekafp.com/670, https://eurekafp.com/588, https://eurekafp.com/590
- Feeder outer diameter precision < ± 0.0025mm (2.5 microns)
- Feeder overall dimension precision < ± 0.025mm
* extra $25 for additional ebonite feed(s), if needed.
* you can purchase different kinds of ebonite feeder,
see here: https://eurekafp.com/670
◆ What is PEEK material?
PEEK is used in Aerospace / automotive / electrical industries, Semiconductor equipments, medical devices, and extreme situations where all other general plastics fail.
PEEK is a super engineering plastic, with the following characteristics:
1) superb chemical resistance (not affected by Acids, alcohol, acetone, diluted bleach, and other harsh chemicals)
2) high temperature resistance (max continuous use 260C / short duration 300C) (general plastics will get distorted even at Sub 100~120C)
3) superb strength, wear resistance, durability (on another level, compared to general plastics)
typically a fountain pen is made from general-purpose plastics ("Resins") such as:
ABS, Acrylic / Plexiglass, PC, PP, Epoxy, etc.
PEEK will greatly outperform the general-purpose plastics.
a high quality PEEK will cost 10~20x of acrylic.
◆Ebonite (Japan)
There's a substantial quality difference between Japanese vs Chinese / Indian ebonite.
the biggest issues we noticed with chinese / Indian ebonite is as follows:
1. lots of contaminants
2. lots of pits and micro-cracks
3. more nasty smell
Japanese high quality ebonite material does have the above problems as well.
However, the frequency of the problems we experienced is literally much, much less.
(we have experience with Indian / Chinese Ebonite as well, although they are not used anymore)
--------------------------------------------------------------------------------
<<<Important Information >>>
◆ How to use Eureka ultem cartridge (MUST READ): https://eurekafp.com/824
◆ What is micro-hammered finish nib?: https://eurekafp.tistory.com/591, https://eurekafp.com/731
◆How to Receive Notification For Newly Made Pens: https://eurekafp.com/notice/432
◆ (TIPs) Easy Roll Stoppers Four Your Eureka Pens: https://eurekafp.tistory.com/560
◆ Con-70 / 40 related manuals:
https://eurekafp.com/757, https://eurekafp.com/689, https://eurekafp.com/681, https://eurekafp.com/641, https://eurekafp.com/707
---------------------------------------------------------------------------------
◆ Miscellaneous Price:
----- Spare O-ring Set (NBR Material S.Korea)
5 pieces: $2.00 / 10 pieces: $4.00 / Details: https://eurekafp.tistory.com/716
----- Additional Ebonite Feeder: $25~30 / Details: https://eurekafp.com/670
----- Reusable Ultem Cartridge: $15 / Details: https://eurekafp.com/824
----- Black Silicone Plugs (For Ultem Cartridge): $0.5 / Details: https://eurekafp.com/877
----- Pen Rest (Faceted / Diamond) (50% off when purchased with a pen)
Pen Rest (Diamond): $30 ---> $15 / Details: https://eurekafp.com/781
Pen Rest (Faceted): $25 ---> $12.5 / Details: https://eurekafp.com/780
◆ Fountain Pen Price:
*Price may be adjusted due to various factors
----- Shipping: $25 (EMS Express, 7 days, full coverage insurance)
● Nib: Bock Plain (M) / micro-hammered finish (in-house)
* accurate nib selection from batch, Slit adjustment, tine alignment, point alignment, baby bottom check / reduction, overall nib smoothing, scratch reduction, feed heat setting, micro-hammering applied
● Feed: Eureka 5th Gen. V4 Ebonite feeder
● Ink Storage:

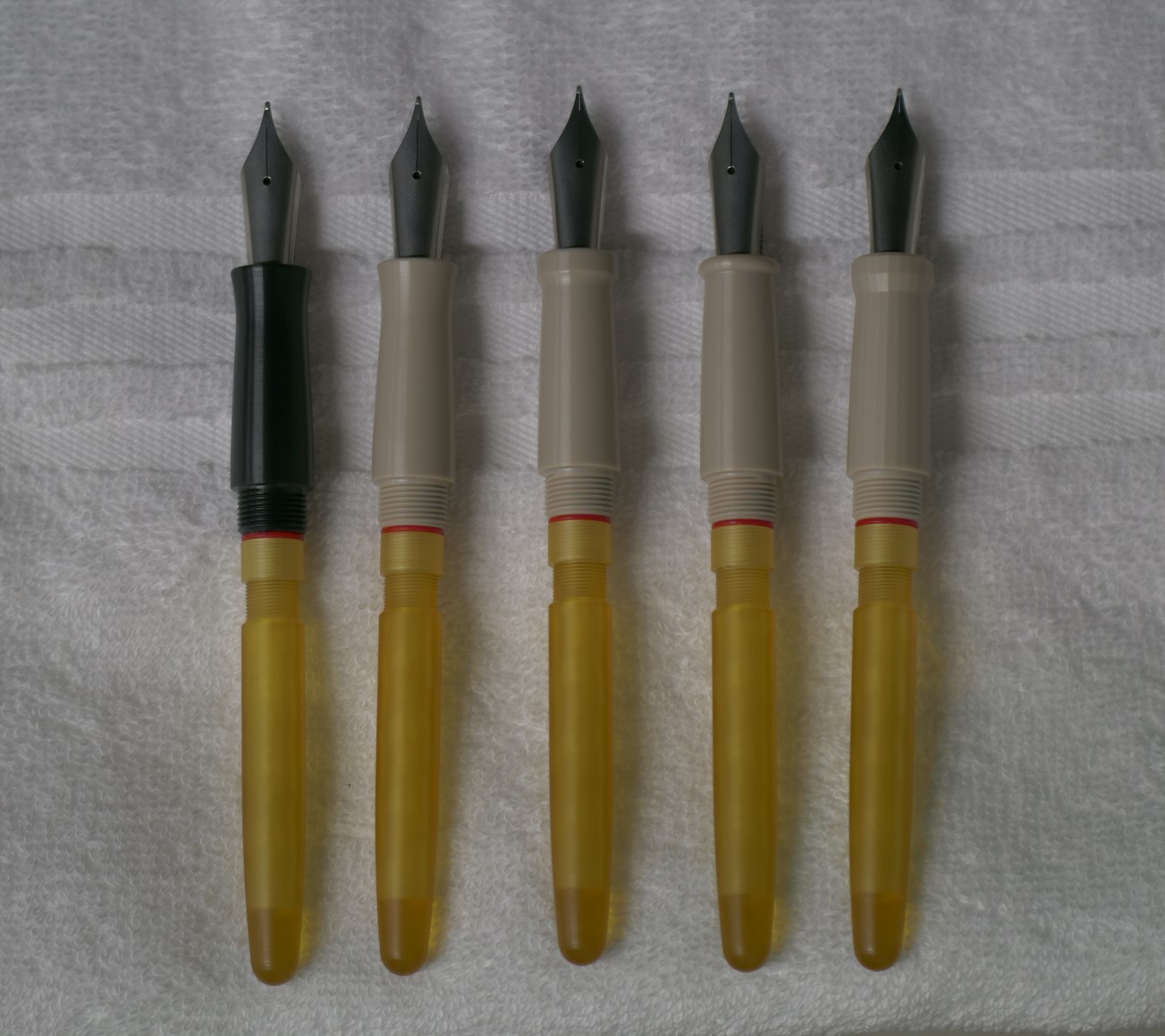

1) Eureka Machined Ultem Cartridge (included / reusable)
2) Pilot Con-70 / Con-40 (MUST READ MANUAL / not included)

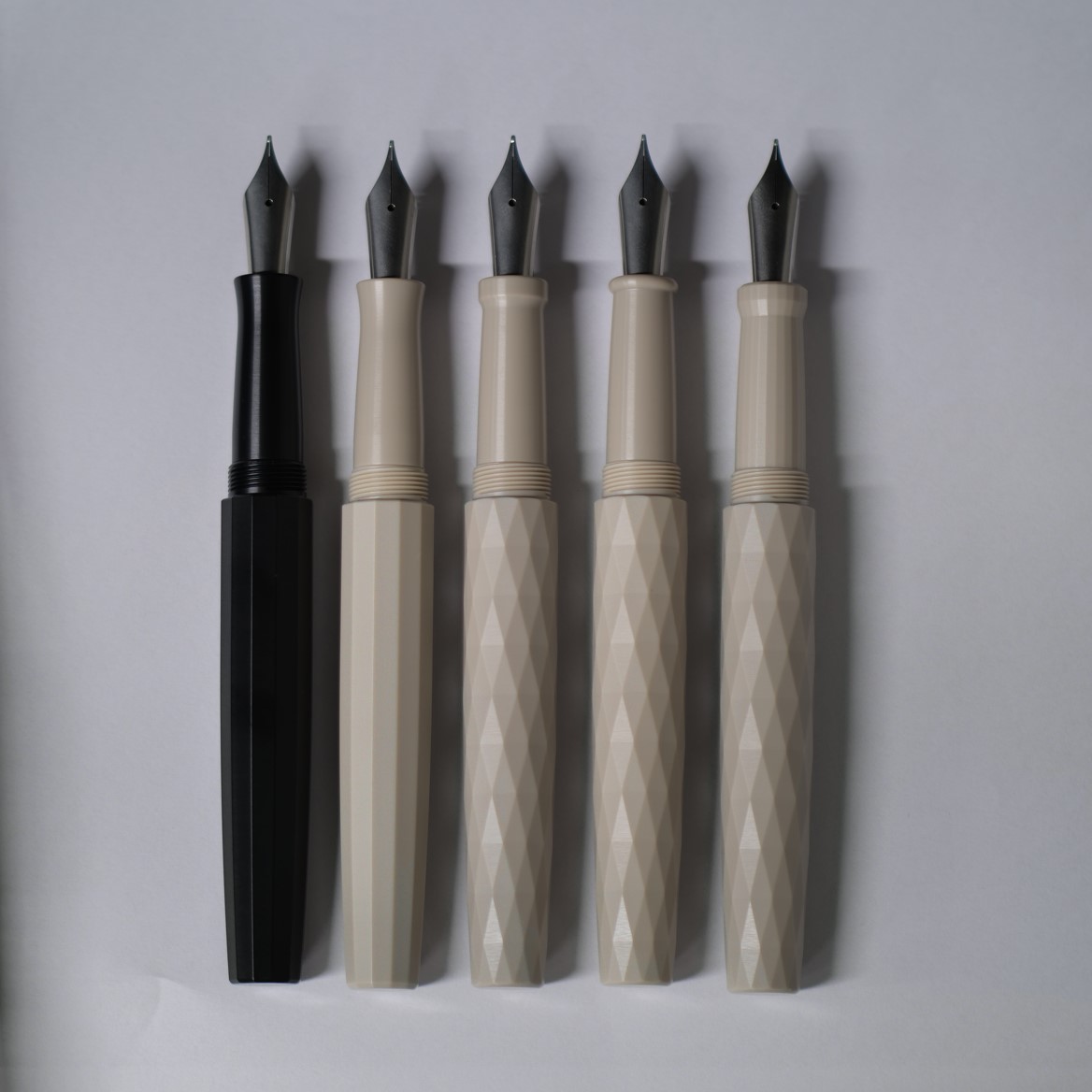

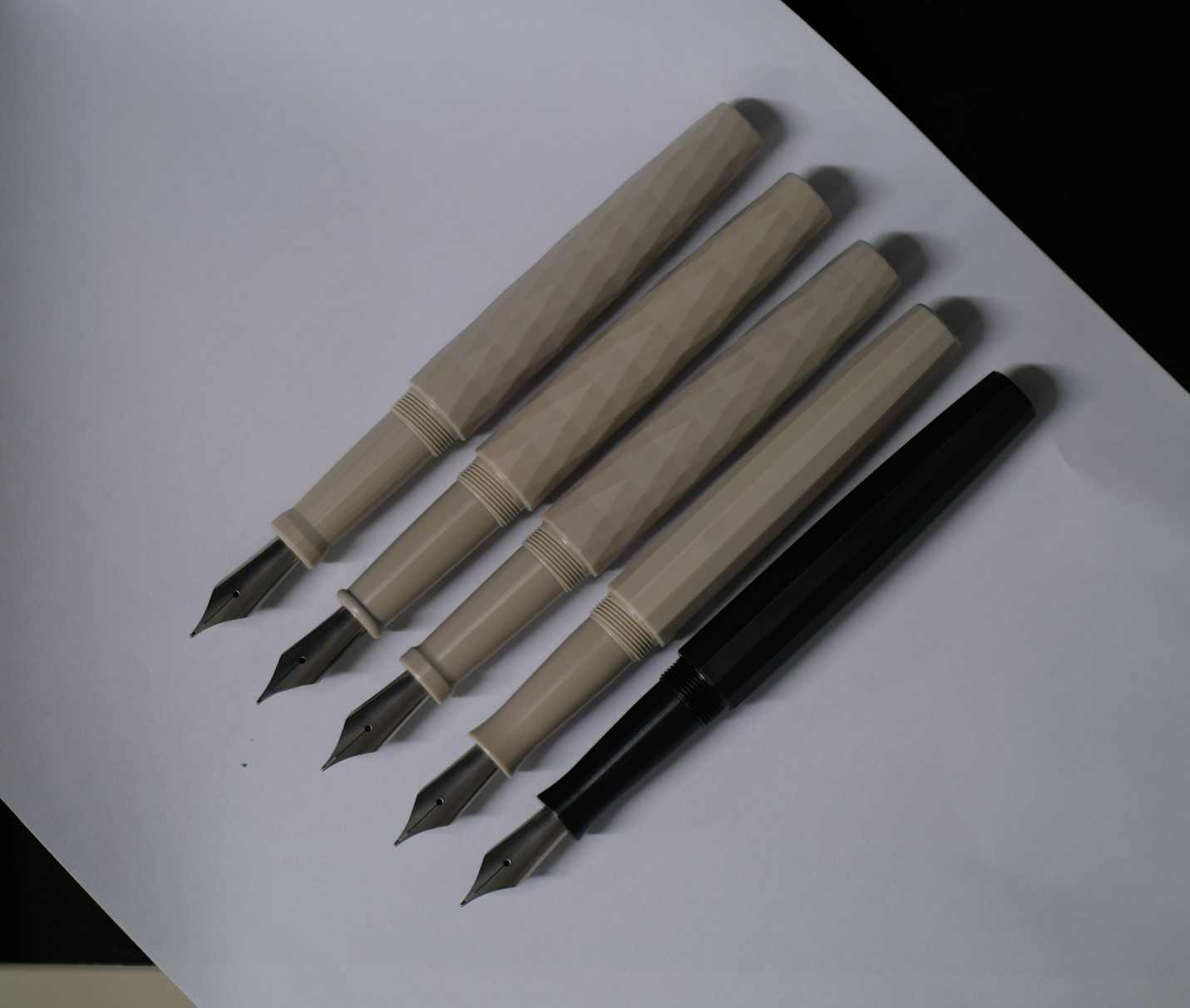

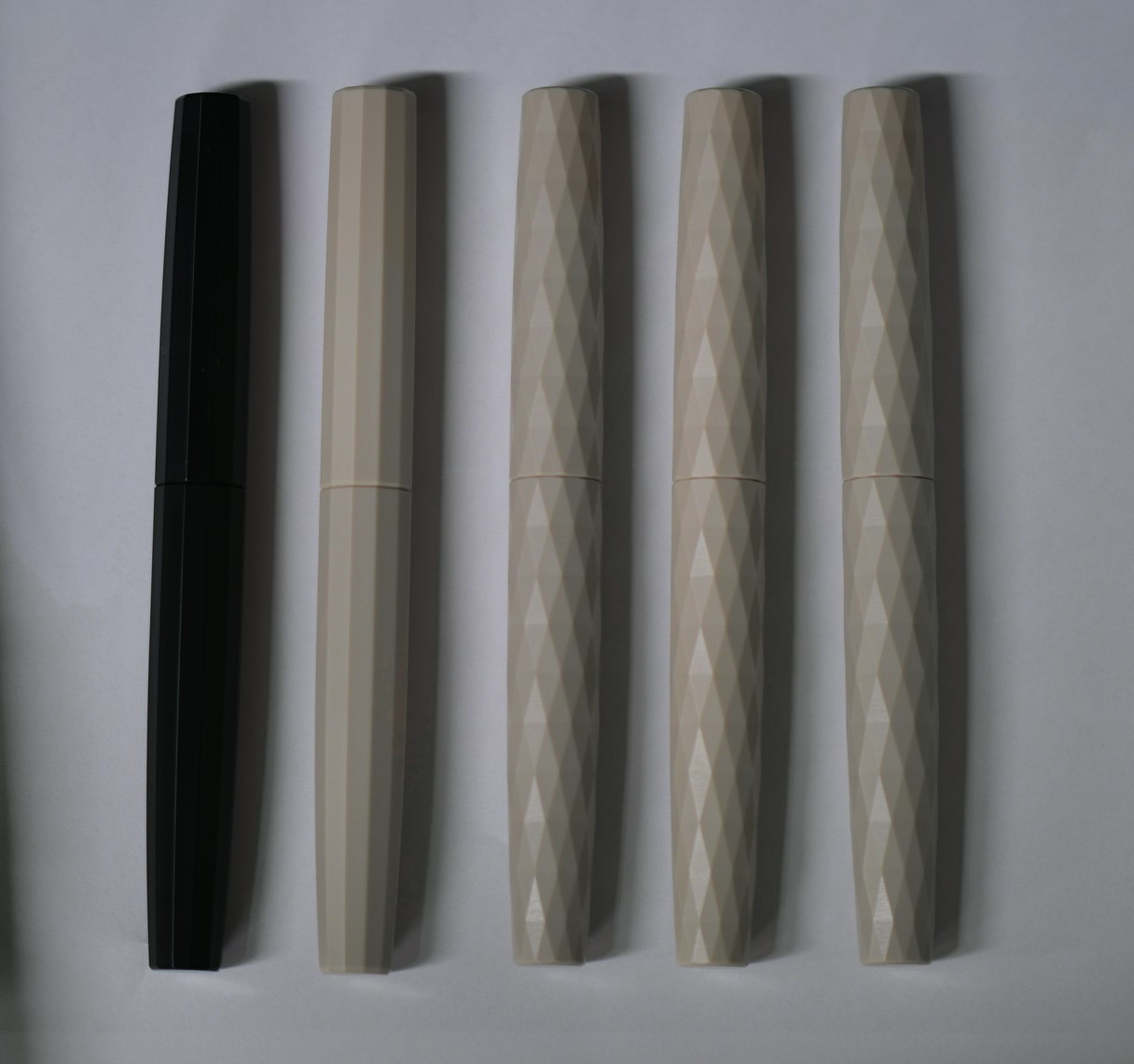

Price: From Left1) $120 / 127 (Wise / Paypal) + shippingdodecagon symmetry peek black*peek black quality: A
2) $130 / 138 (Wise / Paypal) + shipping
dodecagon symmetry peek3) $145 / 154 (Wise / Paypal) + shipping
diamond symmetry peek 4) $145 / 154 (wise / Paypal) + shipping
diamond symmetry peek
5) $150 / 159 (Wise / Paypal) + shipping
diamond symmetry peek
*the pen in the below will be sent
