How to remove / install feeder (for titanium nib)

by Eureka_Admin

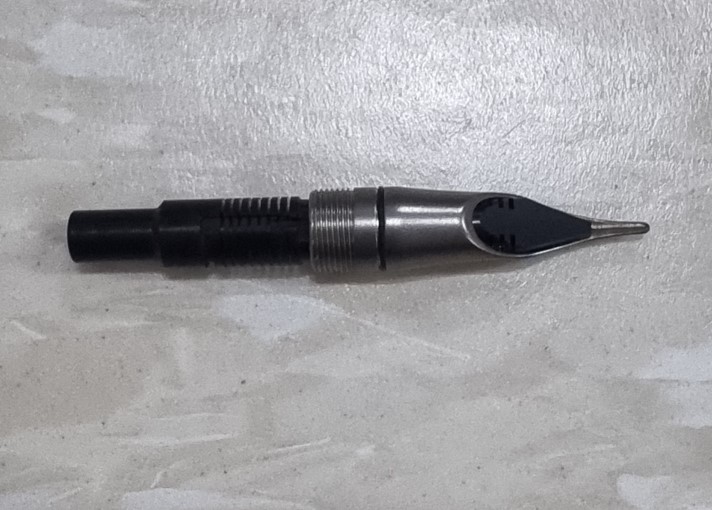

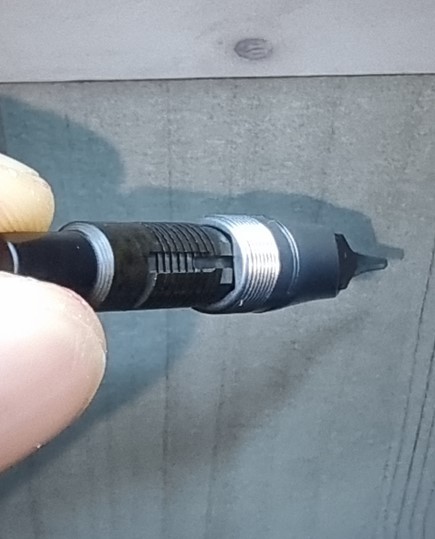

1. Rotate nib & feeder counterclockwise to disassemble from grip section.

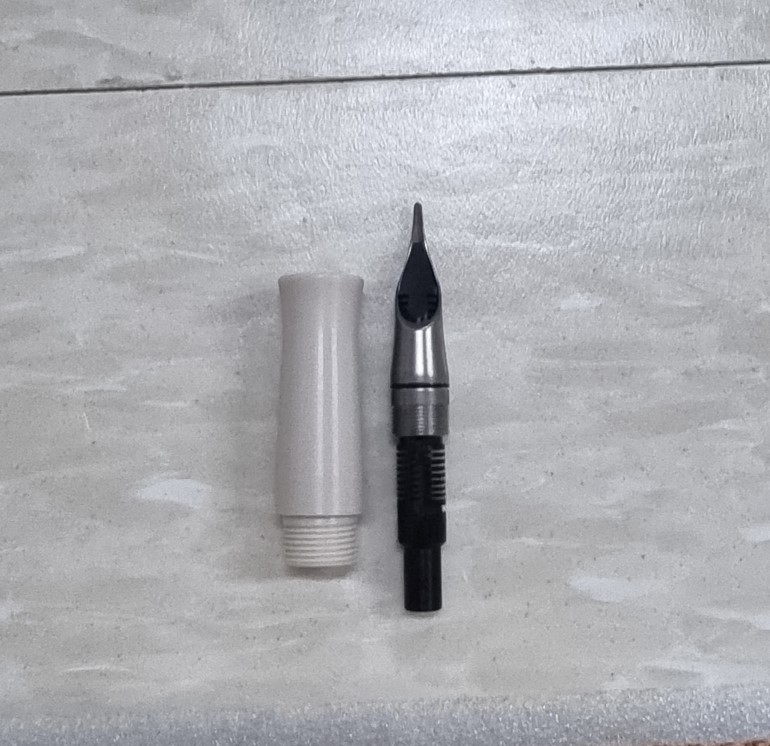

2. released from the grip section

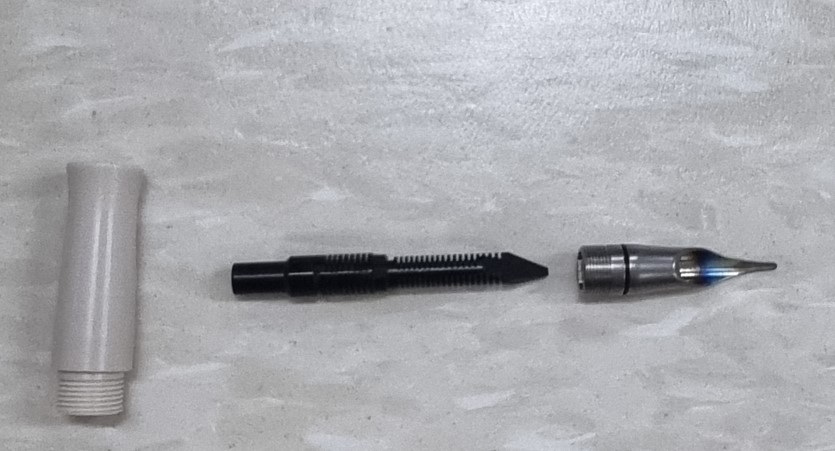

3. Pull the feeder out carefully (may require some force), give it a slight rotational wiggle if necessary.

to install again, simply push in the feeder into the nib (until feeder's faceted area)



4. allign the faceted (angled) area of the feeder & nib.

Rotate the feeder to find the correct place.

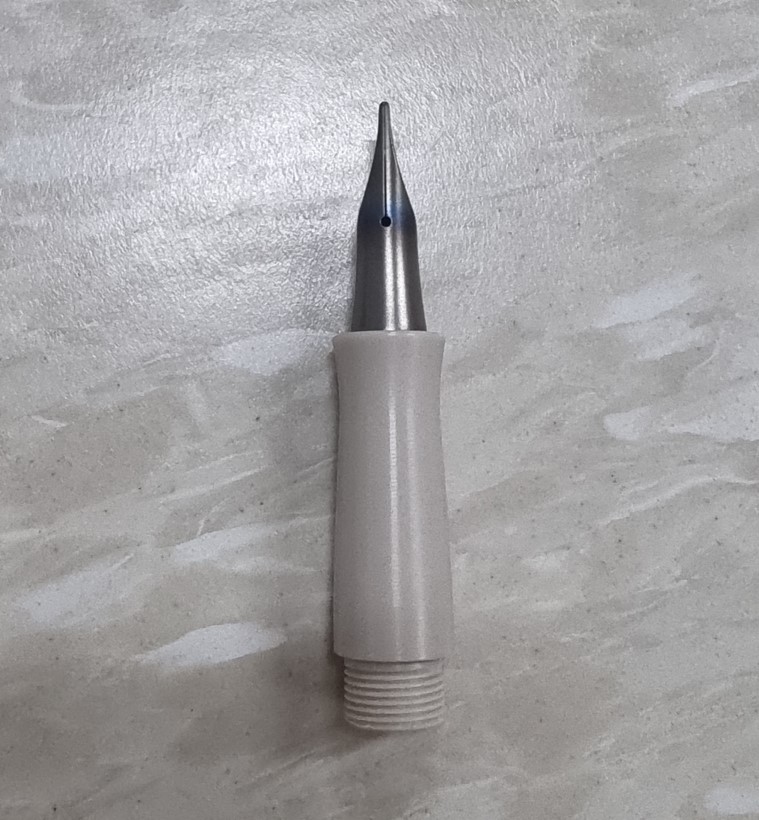

5. once the feeder and nib are located correctly, push in the feeder all the way.



6. rotate the nib & feeder clockwise to install into the grip section.
