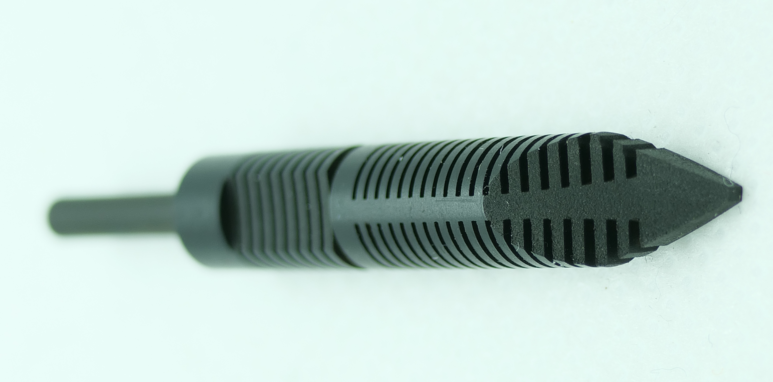

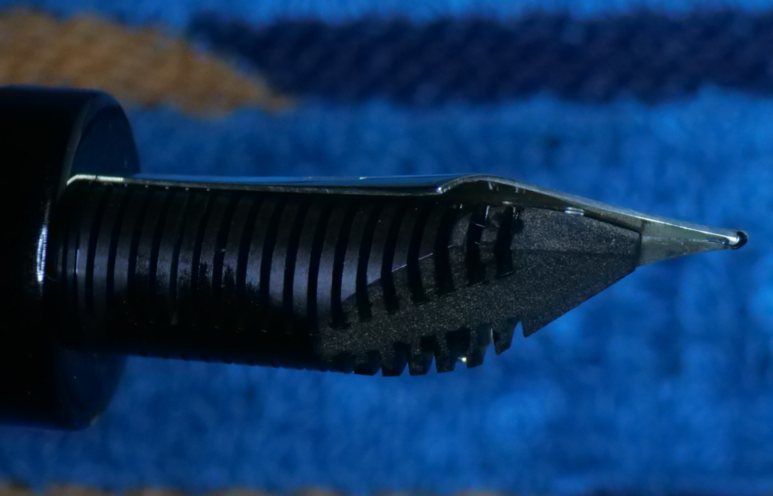

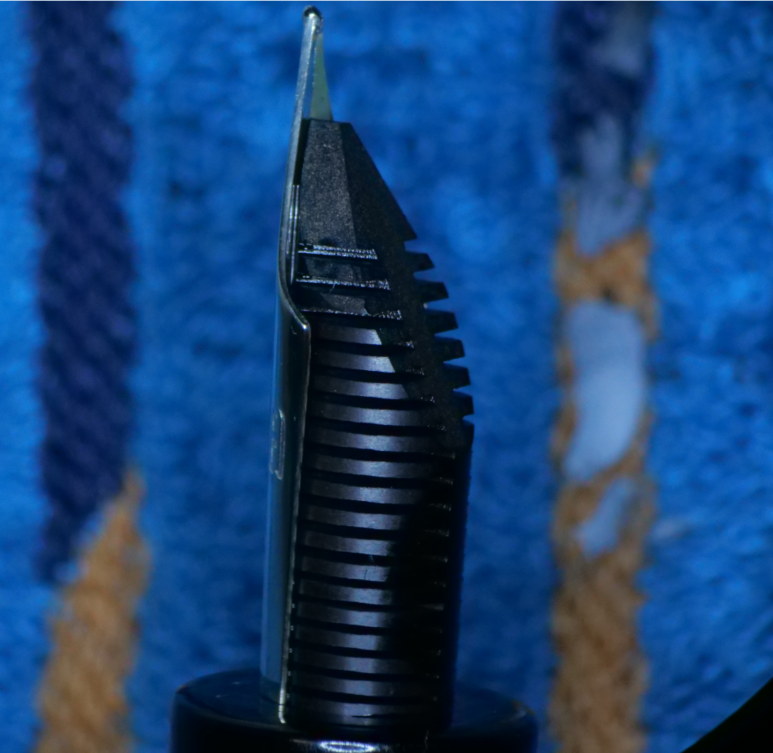

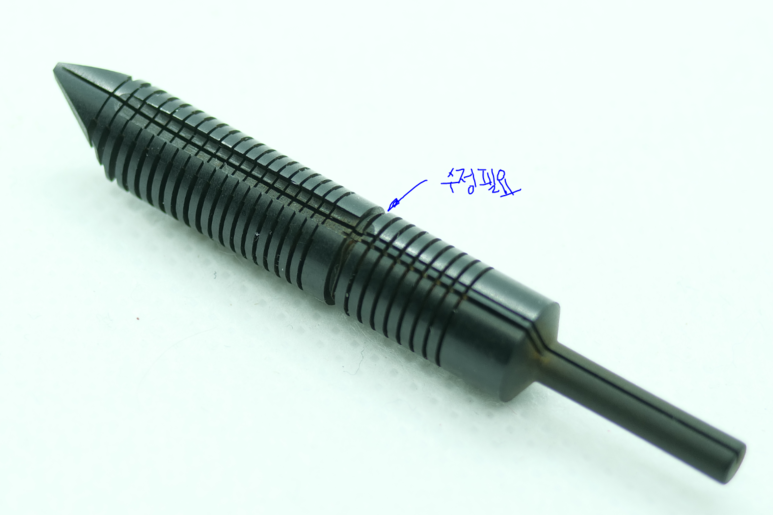

Ebonite Feed 3rd. Gen V4.0, V5.0

by Eureka_Admin

Upgrade list

1) Differentiated comb thickness at front section (front side thicker then rear ones)

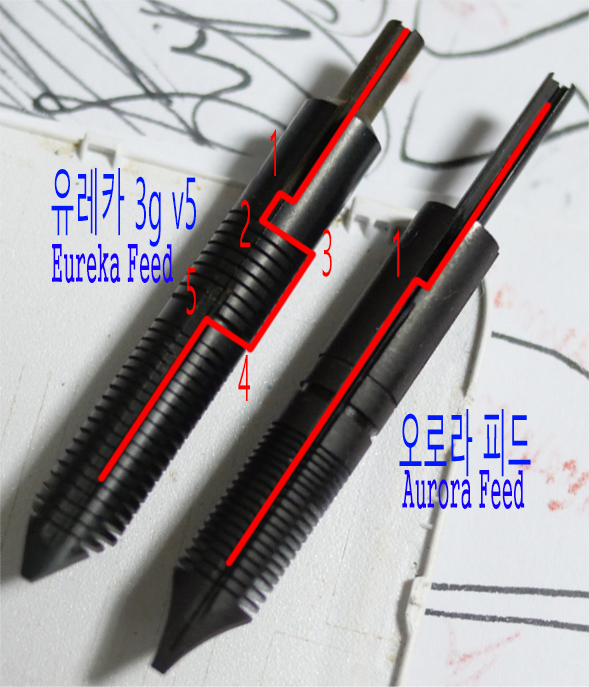

2) 5 turns of air/ink path (Most ebonite feeds 1 turn), stability increased.

3) micro slitting across the front part added, to inprove function and stability

4) tail thickness significantly increased to improve durability

5) feed overall thickness increased

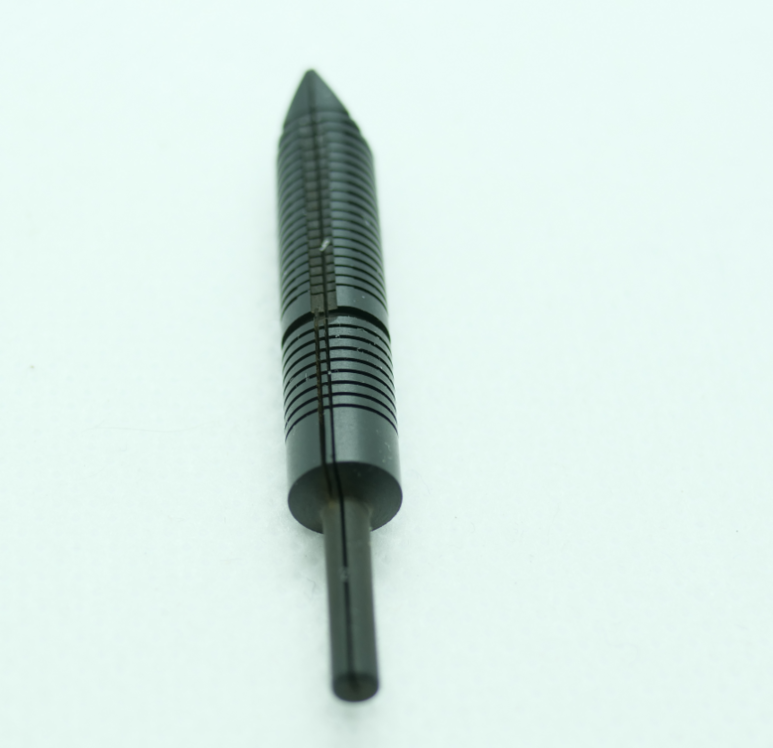

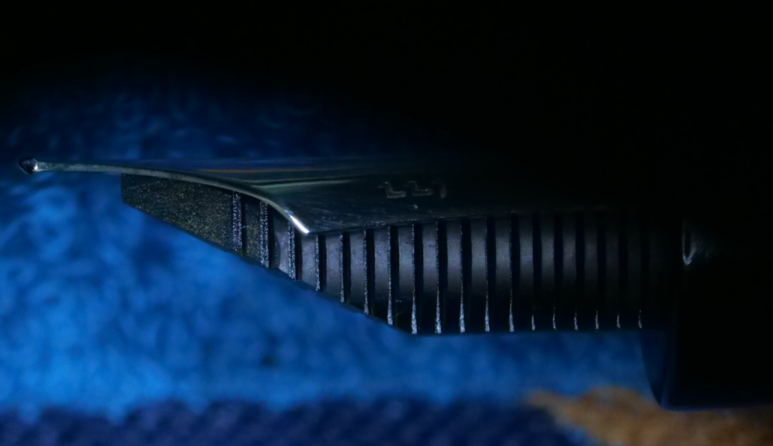

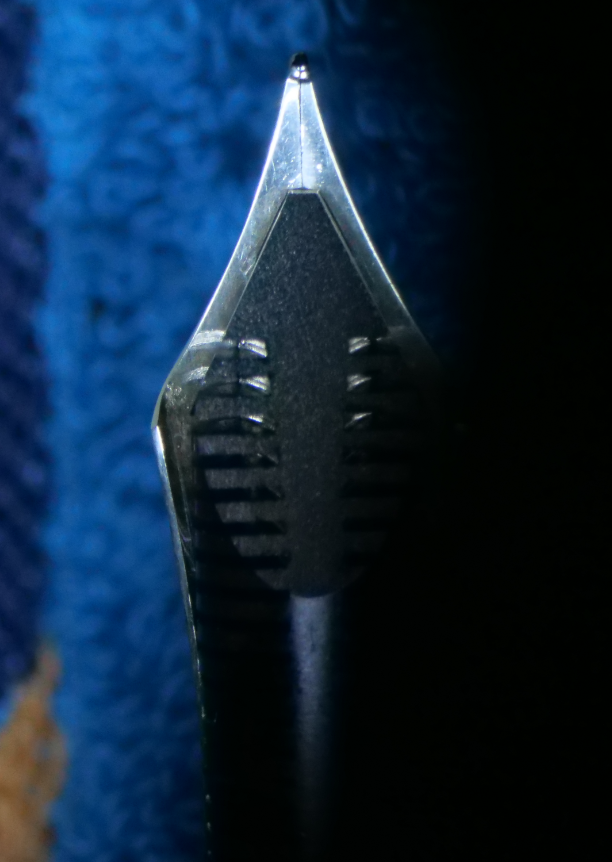

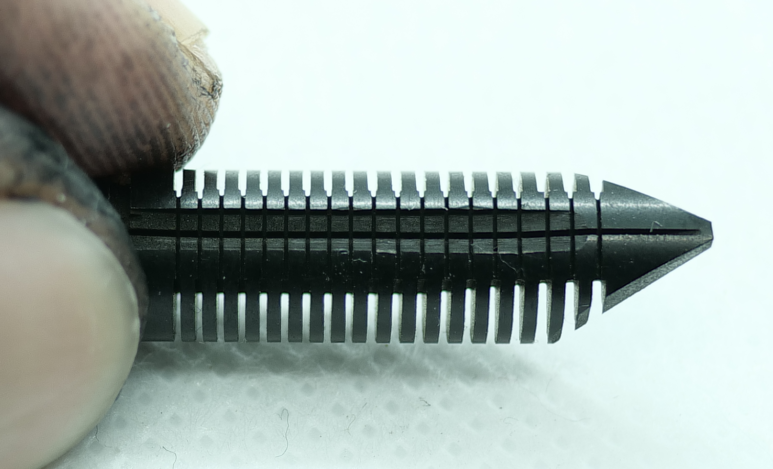

*below is the lastest version: 3G V5.0, not V4.0 (as of 10/05/2019)
