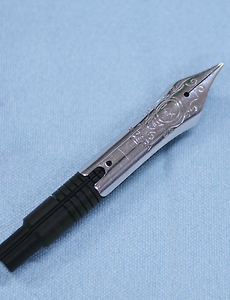

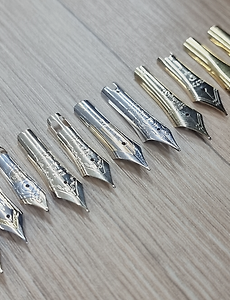

Platinum nib compatible ebonite feed developed (eureka grip required) Platinum nib compatible ebonite feed has been developed this requires specially designed grip section overall feed design is similar to Bock compatible ebonite feed except: 1) nib groove 2) tail size 3) frontal slant angle after making certain amount of these, i will move onto making ebonite grip section for urushi coating after that i will make some ebonite grip section for regular models these.. nib surface treatment study This is my recent nib surface treatment studyI recently acquired plain Bock nibs from Germany.which, to my surprise when magnified, the polishing didn't satisfy me.so i started a little study. these nibs are the ones used for this studyfrom top left:1) original two tone bock nib2) original plain bock nib3) blasted plain bock nib4) blasted two tone bock nib5) micro blasted two tone bock nib origi.. 5th gen ebonite feed v2 developed Following has been changed: 1) frontal top portion thickness changed 2) external rib increased by 3 3) internal groove (top) increased by 3 A total of 159 cutting process used to complete this feed left: v2, right: v1 ebonite feed (5G) + CON-70 fitting test The following have been observed during the fit test: 1) compared to 4th gen ebonite feed, which used a screw type ink converter, the con-70 increased ink capacity by 3~4 times. 2) when filling the ink, i noticed i have to dip deeper into to the ink bottle to achieve stable ink fill. compared to 4th gen, the dip amount increased. i think this is due to the quick suction of the ink by Con-70, as .. 5th Gen Ebonite Feed developed Finally completed the 5th gen ebonite feed the following have been upgraded: 1) super precision attained with ebonite material 2) more complex internal (inside grip) structure 3) equal level of complexity as plastic feed 4) high precision fit of given nib, through 3D nib groove machining 5) high level of fit, even without heat setting 6) Con-70 converter compatible 7) stable eye dropper performa.. review by dneal https://fpgeeks.com/forum/showthread.php/40739-Dodecagon-Asymmetry-Blue Dodecagon Asymmetry Blue "When Men differ in Opinion, both Sides ought equally to have the Advantage of being heard by the Publick; and that when Truth and Error have fair Play, the former is always an overmatch for the latter." ~ Benjamin Franklin fpgeeks.com review by Jon S. https://fpgeeks.com/forum/showthread.php/40747-EurekaFP-Diamond-Dark-Blue?p=405756#post405756 EurekaFP: Diamond Dark Blue "When Men differ in Opinion, both Sides ought equally to have the Advantage of being heard by the Publick; and that when Truth and Error have fair Play, the former is always an overmatch for the latter." ~ Benjamin Franklin fpgeeks.com review by Mick L - The Offstage Me https://www.youtube.com/watch?v=DReJVuQn2T0 B & C for Urushi (new version) completed hello guys, new update for the new version of urushi pen development the following has been improved, compared to previous version: 1) internal & external thread is pretty much perfect now 2) the end point of internal & external thread is "escape type" previous type had a groove for thread tool escaping, which reduced strength/durability at that groove spot. 3) barrel and cap end contour more fl.. Dodecagon Cigar Symmetry (Ultem) Developed Today i completed the grip section for the dodecagon cigar symmetry (ultem) now, the project is complete. for the grip section, i wanted to do dodecagon as well. unfortunately, it was uncomfortable to write with, due to the large spacing of the angles. so i tried 24, 36 angles. overall 24 angle was best. the following has been aligned: 1) barrel, cap, grip angle aligned 2) bock nib unit, when in.. Dodecagon Symmetry "Cap" completed This time i completed the dodecagon symmetry ultem (cigar type). in the last post, i presented the dodecagon ultem barrel, which was quite hard to do. however, this time the difficulty was at least 2x. it was especially difficult for following reasons: 1. when closed the barrel and cap angle must line up accurately 2. there's three different ways the tripple thread engages when it closes. even w.. Asymmetry Diamond Dodecagon Cap developed Asymmetry Diamond Dodecagon Cap developed This was a bit ambitious project for me, because i have not ventured into multi-facet machining. the required precision and requirement was quite high, and took months of hard work to master. the multi-facet comprises of 408 small triangles. depending on the view angle, the reflection pattern will change. it requires great precision for all 408 triangles.. Dodecagon Symmetry "Cigar" Barrel completed So far, i could only make linear (rod) dodecagon. This was due to precision issues. the level of precision required is quite high, even for Rod dodecagon, for "Cigar" or Taper dodecagon even more precision is required. thanks to recent research, i successfully developed "Cigar" dodecagon barrel. This was my first time making parts from Ultem material (Germany, high quality) since it has a bit le.. eureka asymmetry diamond dodecagon cap fountainpen has been developed (protoype) below is prototype pen, actual production pen will be different production will begin soon! Diamond & Ruby machining process developed For a while, i've been researching for multi-facet precision machining. This is a highly complex process requiring utmost precision. ideally 0.01mm precision is required, however, this is very difficult because all the inaccuracies add up. so far, i've achieved 0.04mm precision. i think 0.1mm precision is okay for sale. now i am trying to achieve 0.01mm precision, although this is gonna take muc.. Review by dapprman https://dappr.net/2019/11/04/eureka-symmetry-and-asymmetry-pens/ Eureka Symmetry and Asymmetry Pens I was not alone in being intrigued when a new post appeared on the FPN forum from a South Korean, who while on national military service, in his spare time designed pens and the machines with which… dappr.net Review by Inkquiring Minds Review by The Wet Pen (TIPs) How to receive notification Follow me on instagram to receive notification for: - R&D news - Restock news of "Sold Out" items - Special custom pens, etc. Instagram: Eureka_fp Review by youkinorn https://www.reddit.com/r/fountainpens/comments/t6spia/review_eureka_symmetry_urushi_with_goldsilver_nib/ From the fountainpens community on Reddit: Review: Eureka Symmetry Urushi with Gold-Silver nib Explore this post and more from the fountainpens community www.reddit.com Review by UK FOUNTAIN PENS https://ukfountainpens.com/2019/10/27/introducing-eureka-fountain-pens-from-south-korea/ Introducing Eureka fountain pens from South Korea | UK FOUNTAIN PENS Eureka Pens is a one-man-band run by a guy called Dovidu from South Korea. He posted up a thread on FPN a couple of months back introducing two entirely new fountain pen designs, fabricated entirely in-house except for the ink converters. T.. Review by JG3 Reviews Review by Inky Rocks Review by Doodlebud (TIPs) Easy Roll Stoppers Four Your Eureka Pens *** Extra caution is required especially for urushi models. you must place silicone tape or protective layer of some sort @ inside surface of the stopper. Do not slide the surface across with the stopper without protective layer, it will cause scratches. always pry open the stopper, then place it at desired spot. I am not responsible for any consequences caused by mistakes while installing the s.. Asymmetry dodecagon cap developed new Dodecagon cap developed (ebonite material) new dodecagon cap has been developed in ebonite material.captop logo & side engravings applied.below sample has not been polished Prototype gen5 ebonite feed ink fill test (Con-70) I created a very basic gen 5 prototype feed, for ink fill test only airchannel is applied (some omitted) all other features not applied (rib, ink channel, etc.) this is the side view of the test feed air channel from converter is connected to the hole the hole is drilled to the center of the feed a long thin hole is drilled all the way to the aforementioned hole drilling thin-long hole is not ea.. Prototype drawing of 5th gen Ebonite Feed (research log 6/18/23) i will be developing my 5th gen ebonite feed. based on years of experience on my 4th gen ebonite feed, i have found some areas i can improve upon. 1. first consideration is feed diameter usually #6 nibs have 6mm diameter feed. in order to make ebonite feeder more stably with greater durability i've chosen 6.5mm, same as the 4th gen predecessor. the nib is designed for 6mm feed, but 0.5mm diamete.. New exotic materials to try... These are Super engineering plastics very high quality from germany, very expensive... looking forward to trying out these materials, although it will take much time... PEEK, Black PEEK, PEEK (glass fiber 40%) PEEK (carbon fiber 30%), PEEK (graphite-teflon), PEEK blue (medical grade), Ulterm (galssfiber / natural) 이전 1 ··· 7 8 9 10 11 12 13 ··· 24 다음
